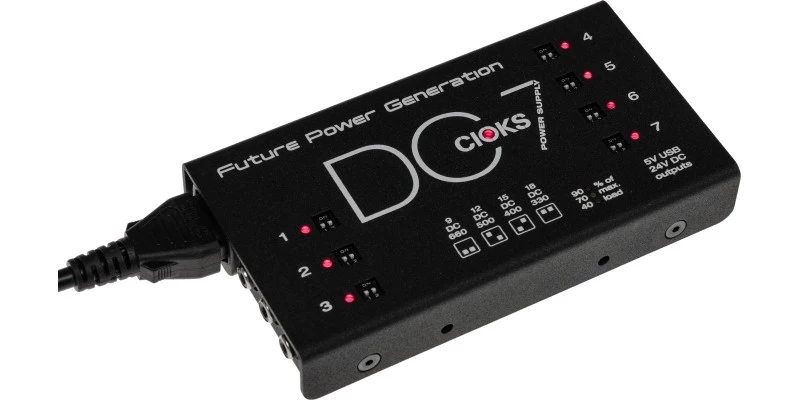

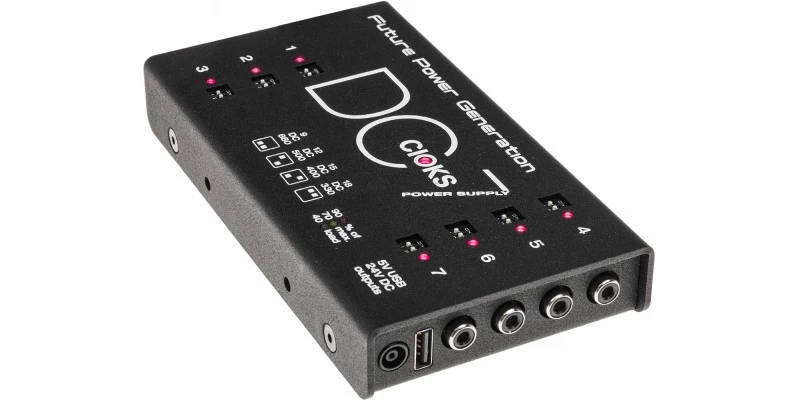

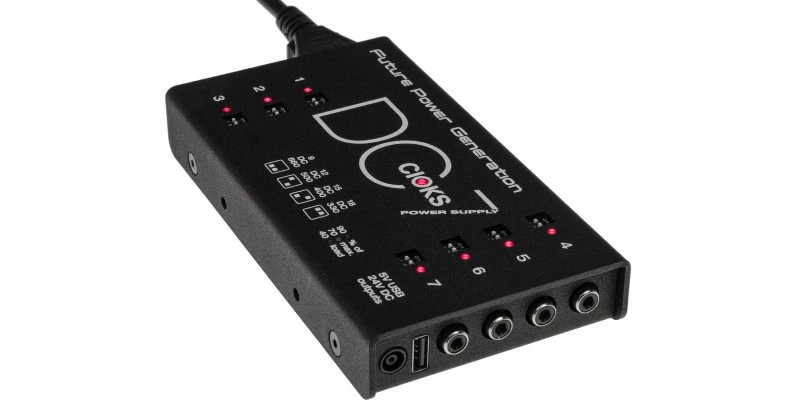

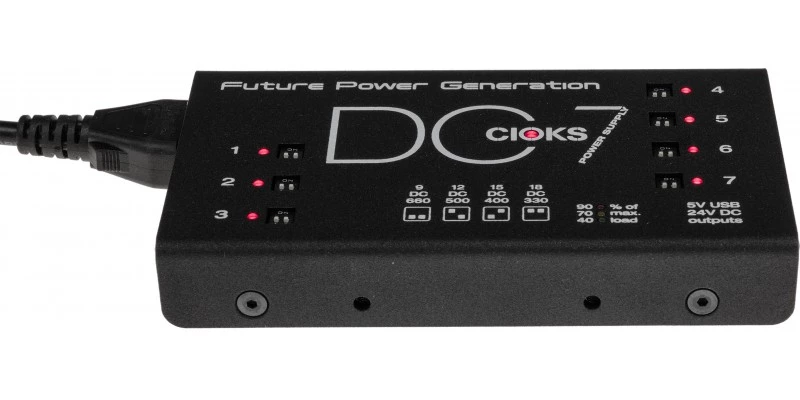

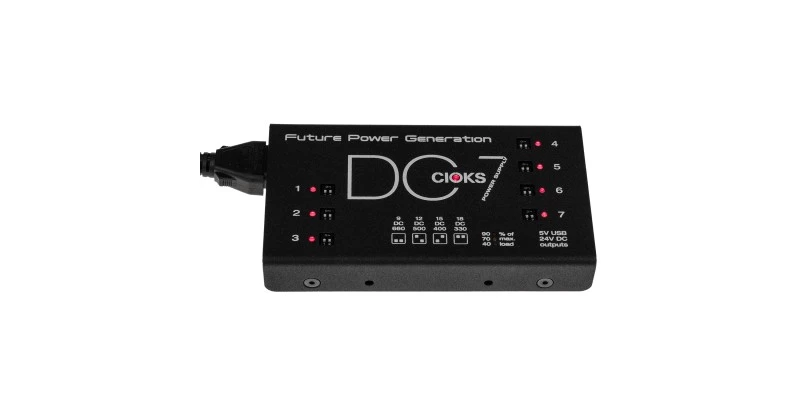

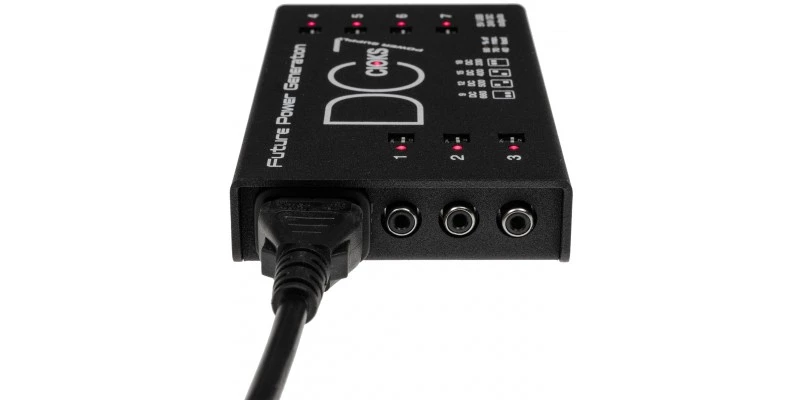

CIOKS DC7 Future Power Generation Power Supply

The CIOKS DC7 Future Power Generation Power Supply is a 7-outlet pedalboard power supply with a range of powerful features to make it the only power supply you’ll ever need. Each outlet has 660mA of current, and is switchable between 9, 12, 15 and 18 V, enabling the DC7 to furnish the power needs of almost any modern digital or vintage analogue pedal. It is expandable via a 24V auxiliary oulet, allowing it to expand with your pedalboard, while a handy 5V USB output allows you to charge your tablet or phone.

The CIOKS DC7 Power Supply is now available from Merchant City Music, online and in our Glasgow store. Pop into the shop and we’ll be glad to talk you through the features. Alternatively, buy online for fast delivery to the UK, Europe and Worldwide.

CIOKS DC7 Future Power Generation Power Supply

The CIOKS DC7 is the thinnest, flexible and most unique power supply on the market today from Danish power supply specialists CIOKS. Perfect for powering a plethora of today’s hungry effects pedals with clean, filtered power, it allows whatever you have on your pedalboard to perform at its best. Thanks to the pure 2-stage switch-mode technology inside, the ground-breaking DC7 also has a low one-inch (25.4mm) profile and weighs just 500 grams.

The profile may be low but the power ratings are certainly not – DC7 puts out a maximum of 48 W from its 9 outlets and allows you to connect multiple high-current modern digital effects, plus provides clean and noiseless power for the fussiest of low powered analogue pedals.

Featuring 7 isolated DC-outlets for effect pedals each with four selectable voltages (9, 12, 15 and 18 V), all of DC7’s DC outlets can put out 6 W, which at 9 V corresponds to a huge 660 mA of current. Additionally, DC7 also has a handy 5 V USB outlet and an auxiliary 24 V outlet. This allows you to further expand your power connectivity and outlet count with a CIOKS 4, as well as with other compatible 24 V DC power supplies, for even more flexibility.

Combined with the large set of Flex cables included, CIOKS are confident in that this is the most flexible, noise-free solution on the market for powering pedalboards with a multitude of different pedals.

CIOKS DC7 Main Features:

• Ground-breaking low profile and weight
• 2-stage switch-mode power supply topology
• Ultra-low noise achieved by multi-stage filtering
• 7 isolated DC-outlets, each providing up to 660 mA (at 9 V)
• Independently selectable DC voltage on each outlet (9, 12, 15 or 18 V)
• 5 V USB Output (max 1A) – perfect for powering your tablet or phone
• 24V DC auxiliary outlet (2A) – for expansion with CIOKS 4 etc. for additional isolated outputs
• Individual power limit LEDs on each output, total load meter and global overload status LEDs
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP – for drill-free mounting on Pedaltrain boards
• 12x Flex cables included
• Universal mains input voltage 90 to 265V AC.
• Total maximum output power 48W
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty
